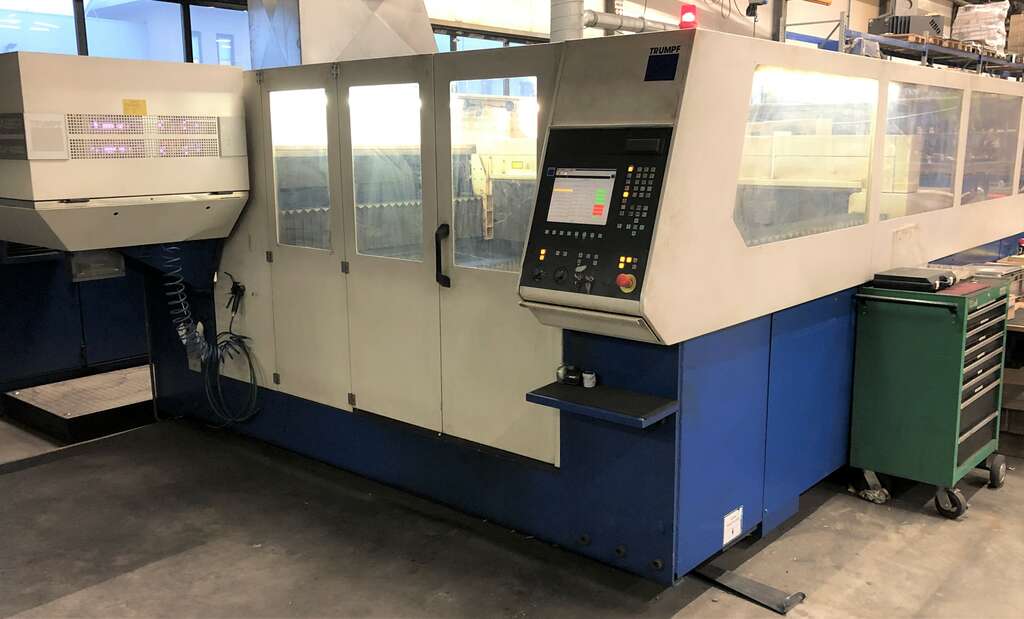

Laser cutting machine TRUMPF TRUMATIC L 4030, 4000 WATT
Metal processing > Cutting machine > Laser cutters
Laser cutting machine TRUMPF TRUMATIC L 4030, 4000 WATT

  • Closed machine frame with integrated laser unit

  • Laser unit: CO2 laser TLF 4000, incl. HI-LAS Plus, beam tube purge with nitrogen and lens monitoring sensor

  • Laser cutting head with 5″ lens and laser cutting head with 7.5″ lens

  • Cutting head quick-change device

  • Automatic sheet edge detection

  • APC Advanced Process Control

  • Positioning laser diode

  • Programmable cutting gas pressure setting

  • Programmable power cycles

  • Microweld

  • Plasma sensor system PSS

  • High-speed processing with SprintLas

  • ContourLas for producing small holes

  • Automatic focus setting AutoLas Plus

  • Laser power control

  • Oil spray device for reliable thick plate machining

  • Laser logbook function

  • Automatic pallet changer and longitudinal conveyor for small parts / slag

  • Work area lighting

  • Automatic shutdown

  • Sinumerik 840D control: Open PC-based control system, easy to use, Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5″ disk drive, RJ45 connection, TFT colour screen

  • Shopfloor programming ToPs 100 lite

  • Safety: Multi-beam light barriers, completely encapsulated and ventilated beam delivery, monitoring system, multi-chamber extraction system and compact dust extractor, safety cabine

    Belt conveyer with container
  • Technical information
  • Contact us
• Year of manufacture  2006
• Manufacturer  TRUMPF
• Type  TRUMATIC L 4030
• Location  DE
• Machine dimensions X-Y-Z  11600-5200-2000 mm
• Machine weight  16000 KG
• Plate thikness  St_20, VA_15, AL_10 mm
• Control unit  Siemens Sinumerik 840 D
• Voltage  Volt
• Power consumption  kW
• Laser type
• Max speed  60/85 m/min
• Min progr. unit  0,1 mm/1m
• Working hours  49.618 / 25.546 H
• Price in CZK  Na vyžádání CZK
• Price in EUR  Upon request EUR
• Delivery conditions  FCA
• Main motor power  4 kW
• Table dim. (W,L)  4000 x 2000 x 11 mm
